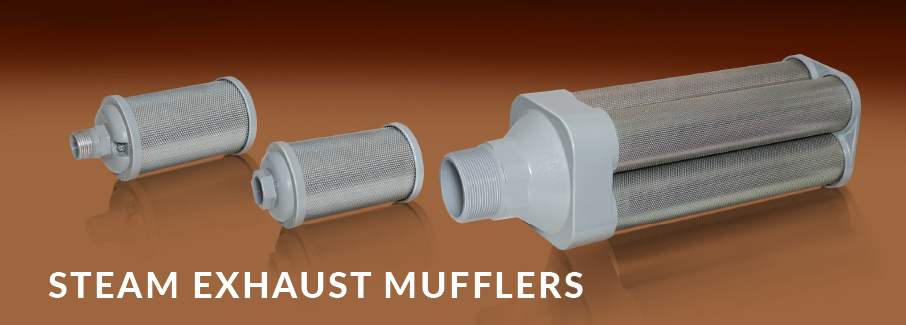

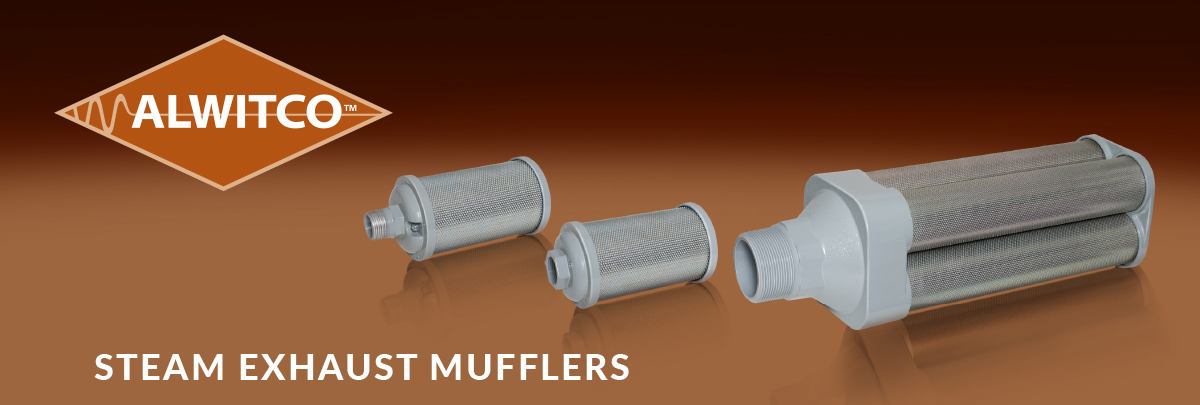

Single Chamber-Male
1/8″- 2″
Single Chamber-Female
1/8″- 2″
Multi-Chamber-Male
3″- 6″

BOILER START-UPS AND FOOD PROCESSING

  • Provides a lower cost alternative to silencing objectionable noise created by steam exhaust outlets during boiler start-ups and testing stages only
  • Replacement elements available to make the muffler ready for the next start-up or tuning job
  • Constructed of corrosion-resistant materials
  • End caps treated with a special epoxy coating for additional resistance in high-alkali conditions
  • Well-suited for low-pressure food processing and similar applications
  • Not designed for permanent installation on boilers or where pressures exceed 125 psi (8.6 Bar)
Single Chamber-Male
1/8″- 2″
Single Chamber-Female
1/8″- 2″
Multi-Chamber-Male
3″- 6″
Connection Thread Types Dimensions
Conn
Size		 Male NPT Female NPS Male BSPT Diameter Length Replacement
Element
Model
Type		 Item
Number		 Model
Type		 Item
Number		 Model
Type		 Item
Number		 Male Female
Single Chamber
1/8 S01 0114001 Z01 0214001 S01 0124001 1.84 3.12 2.81 0951001
1/4 S02 0114002 Z02 0214002 S02 0124002 1.84 4.37 4.00 0951002
3/8 S00 0114000 Z00 0214000 S00 0124000 2.59 5.12 4.56 0951000
1/2 S05 0114005 Z05 0214005 S05 0124005 3.15 6.00 5.50 0951005
3/4 S07 0114007 Z07 0214007 S07 0124007 3.40 7.18 6.68 0951007
1 S10 0114010 Z10 0214010 S10 0124010 3.90 8.75 7.92 0951010
1-1/4 S12 0114012 Z12 0214012 S12 0124012 3.90 8.75 8.00 0951012
1-1/2 S15 0114015 Z15 0214015 S15 0124015 5.25 13.56 12.50 0951015
2 S20 0114020 Z20 0214020 S20 0124020 5.25 18.87 17.75 0951020
Multi Chamber
3 S30 0114030 – – S30 0124030 7.00 22.93 – 0951030
4 S40 0114040 – – S40 0124040 8.00 23.56 – 0951040
6 S60 0114060 – – S60 0124060 11.00 30.93 – 0951060
