Male – 10-32 – 1″

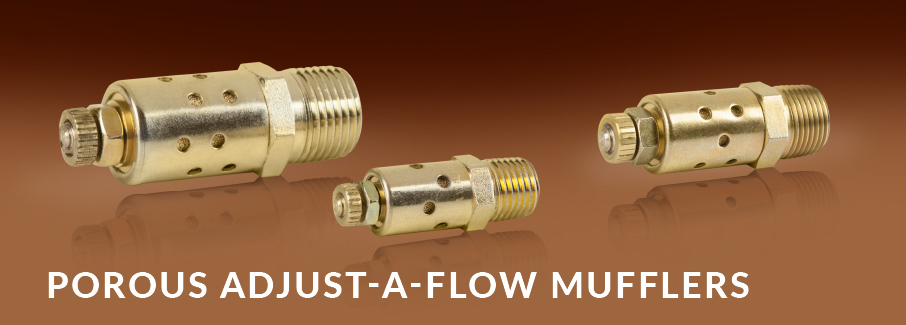

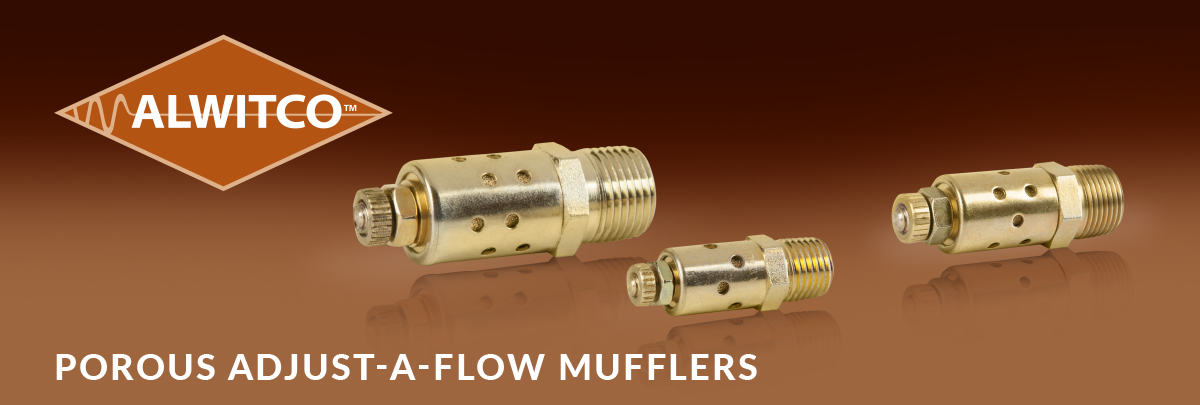

ADJUSTABLE VALVE CONTROLS AIRFLOW AND VACUM RELIEF

  • This porous metal muffler includes a manually-adjustable, tapered metering valve to provide needle-point control of air flow on pressure (exhaust) applications as well as for vacuum relief on vacuum systems
  • Air flow is metered between fully closed and fully open using an external adjustment screw
  • Locknut allows desired setting to be locked in to prevent accidental changes
  • Constructed of 40 Micron sintered porous bronze and zinc-plated steel for durable and superior noise reduction and air flow control
  • Recommended for pressures up to 125 psi (8.6 Bar)
Male – 10-32 – 1″
Male 40 Micron Porous Bronze Element with Steel Casing
Conn
Size		 Model Type NPT BSPT Dimensions
Item Number Item Number Hex Length
10-32 C08 0156008* – .37 1.08
1/8 C18 0156018 0559018 .43 1.34
1/4 C28 0156028 0559028 .56 1.65
3/8 C38 0156038 0559038 .69 2.08
1/2 C48 0156048 0559048 .87 2.51
3/4 C68 0156068 0559068 1.06 2.81
1 C88 0156088 0559088 1.31 3.41
* This item does not have a steel casing.
